  • OILH Hydraulic Winches

Product features

The built-in valve set helps to simplify the hydraulic system, thus the users only need to equip pump station and reversing valve;

The balance valve ensures the stability of the winches during uprising and down setting;

The surface hardening treatment of the gears and nitrogen treatment of the gear wheels ensure lower noise, better loading capacity and more reliability;

The design of setting reduction gears inside of the winching drum, compacted size and helps to save space;

The modular design greatly facilitates maintenance;

Higher eficiency and longer life.



  • Range of application

    Mainly applicable in various hoisting and drawing equipments in shipping, transporting and mining industries , such as container cranges,railway cranes , mobile and crawler mounted cranes,etc.

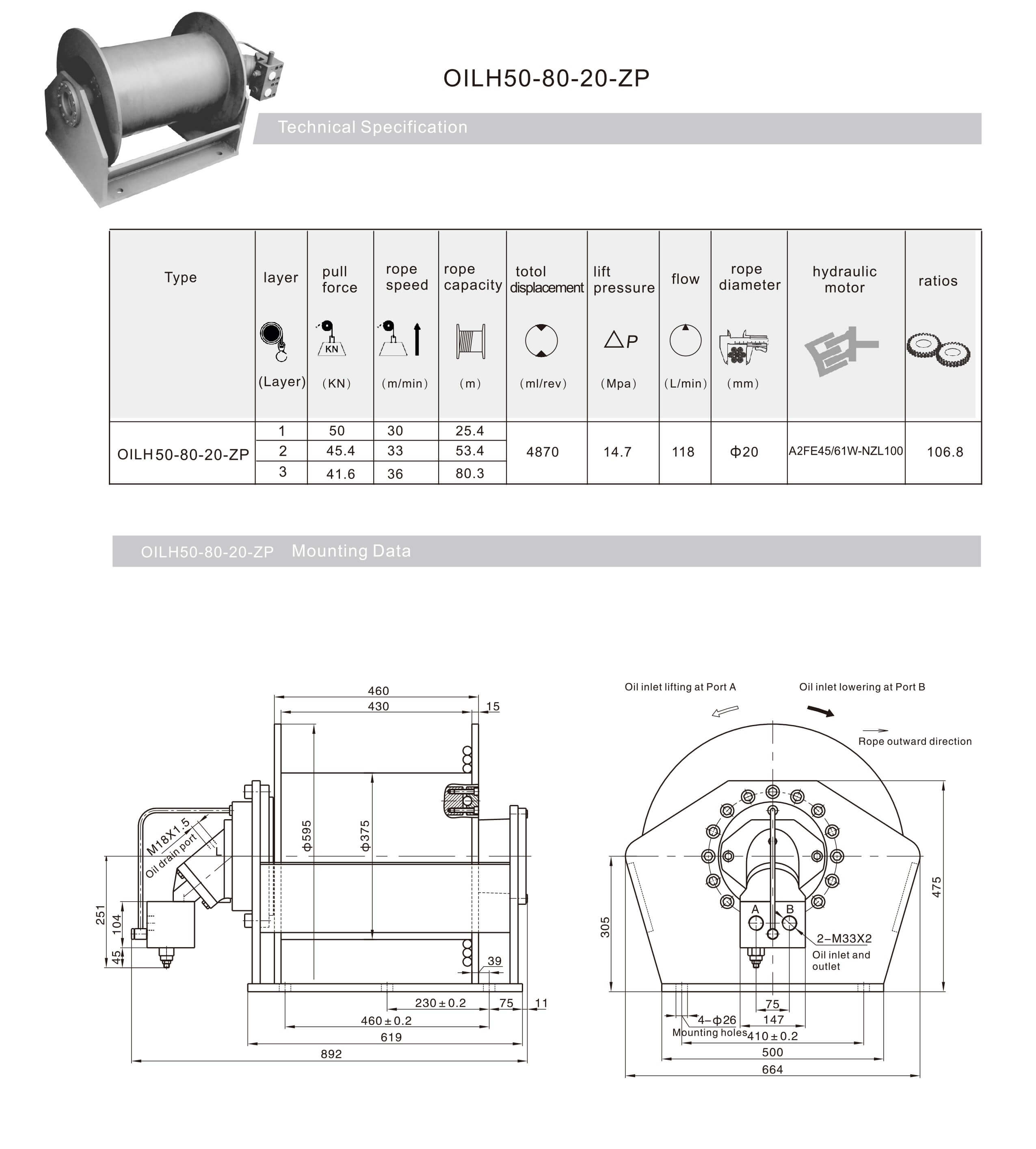

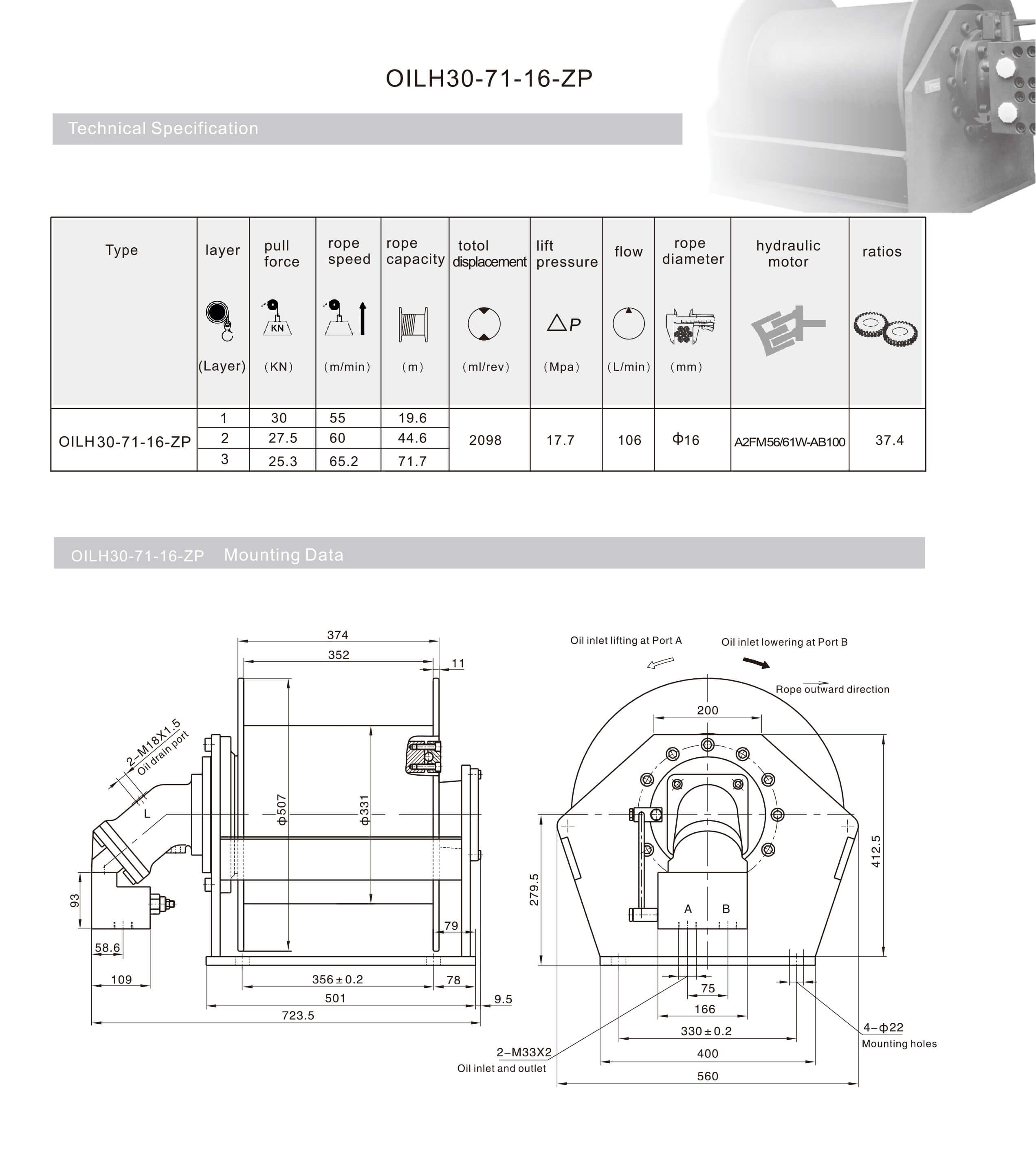

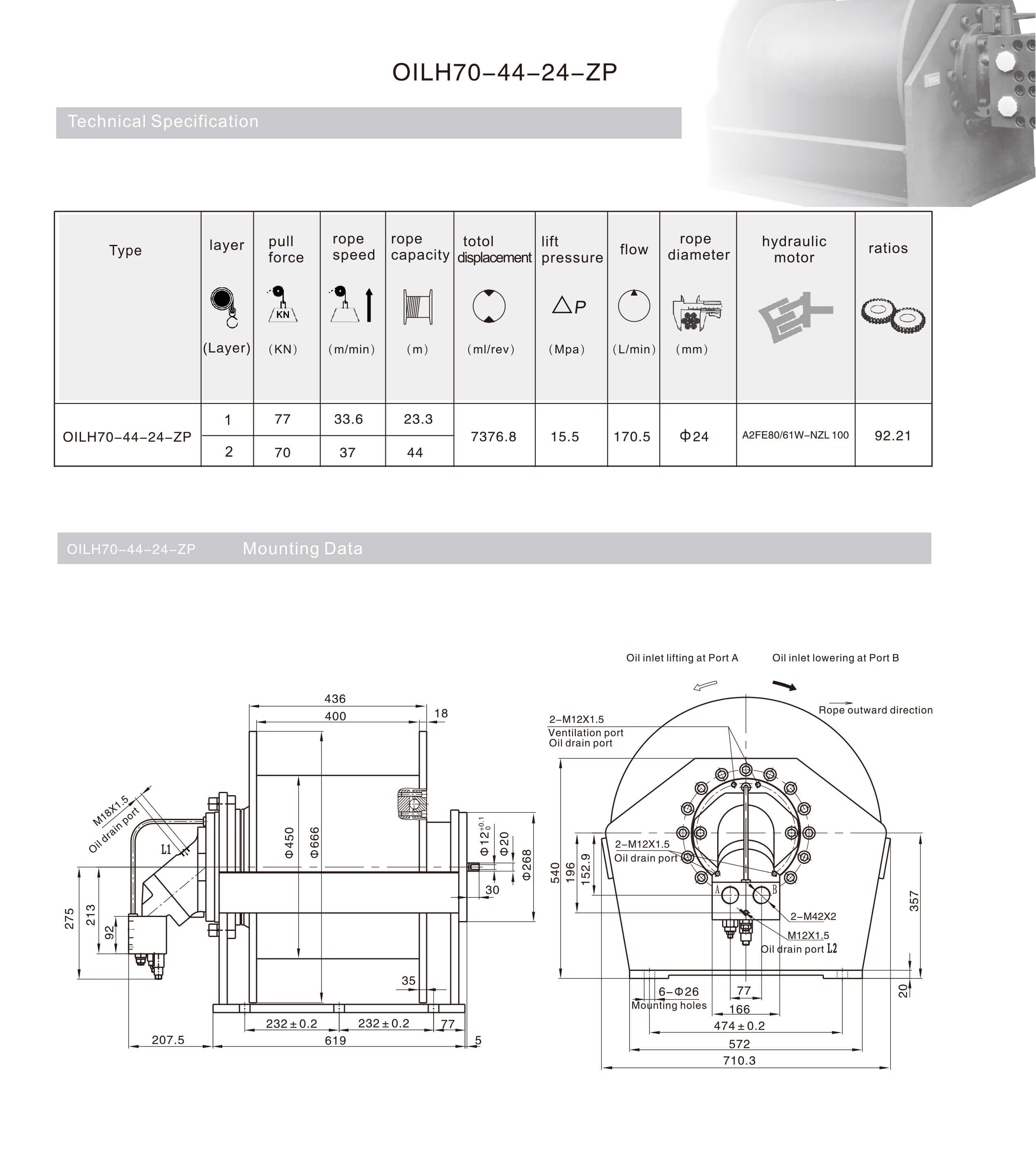

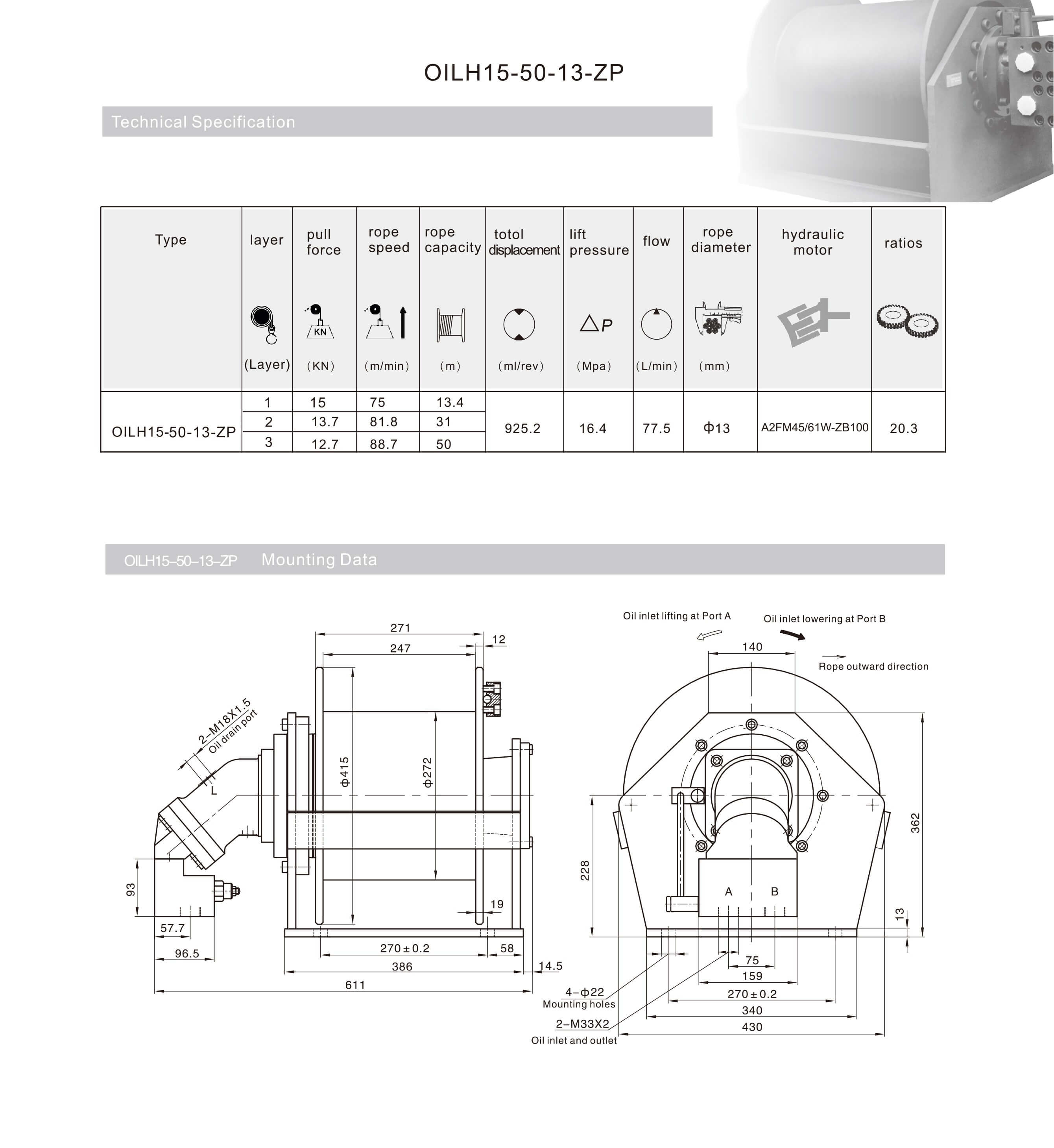

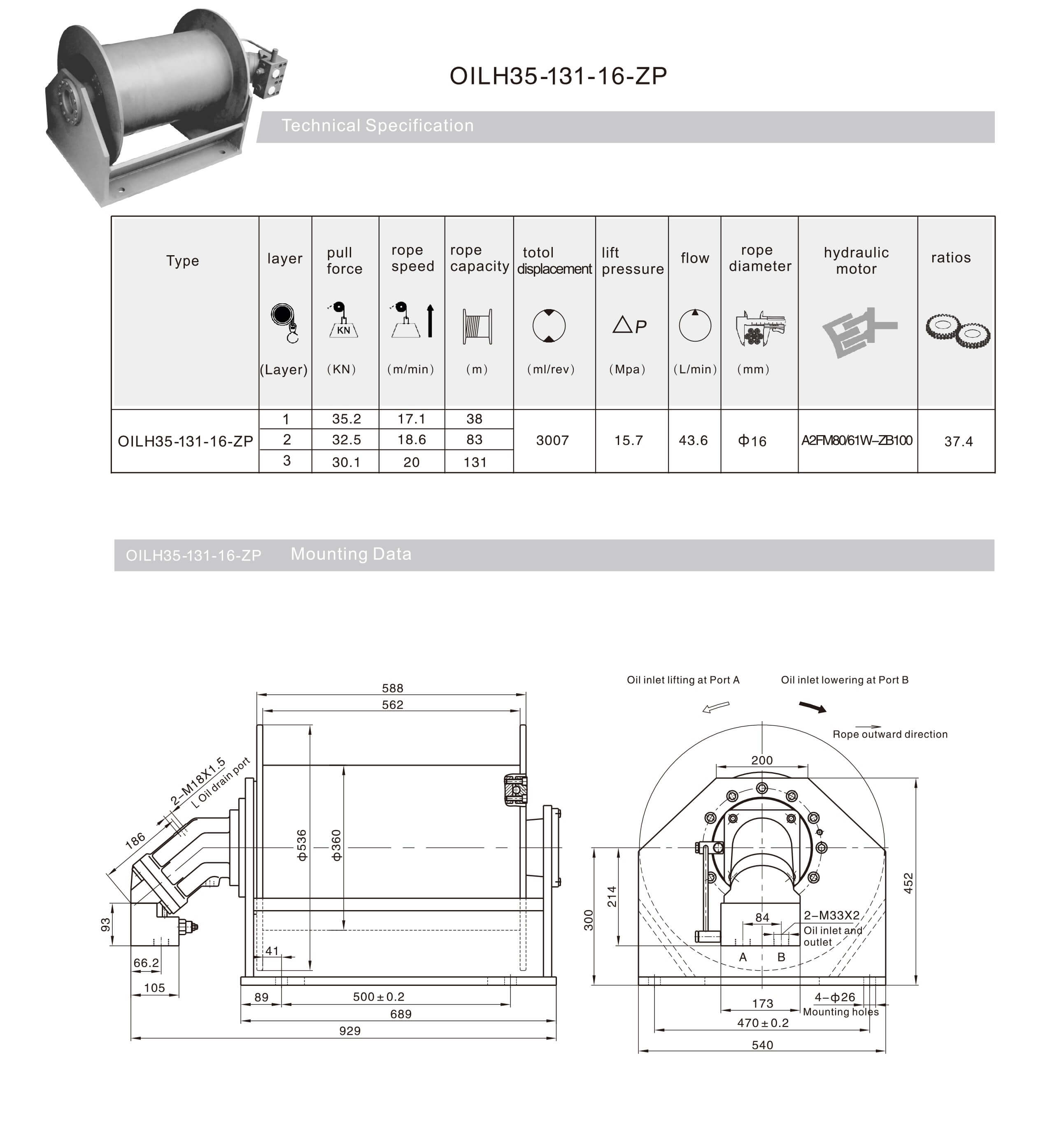

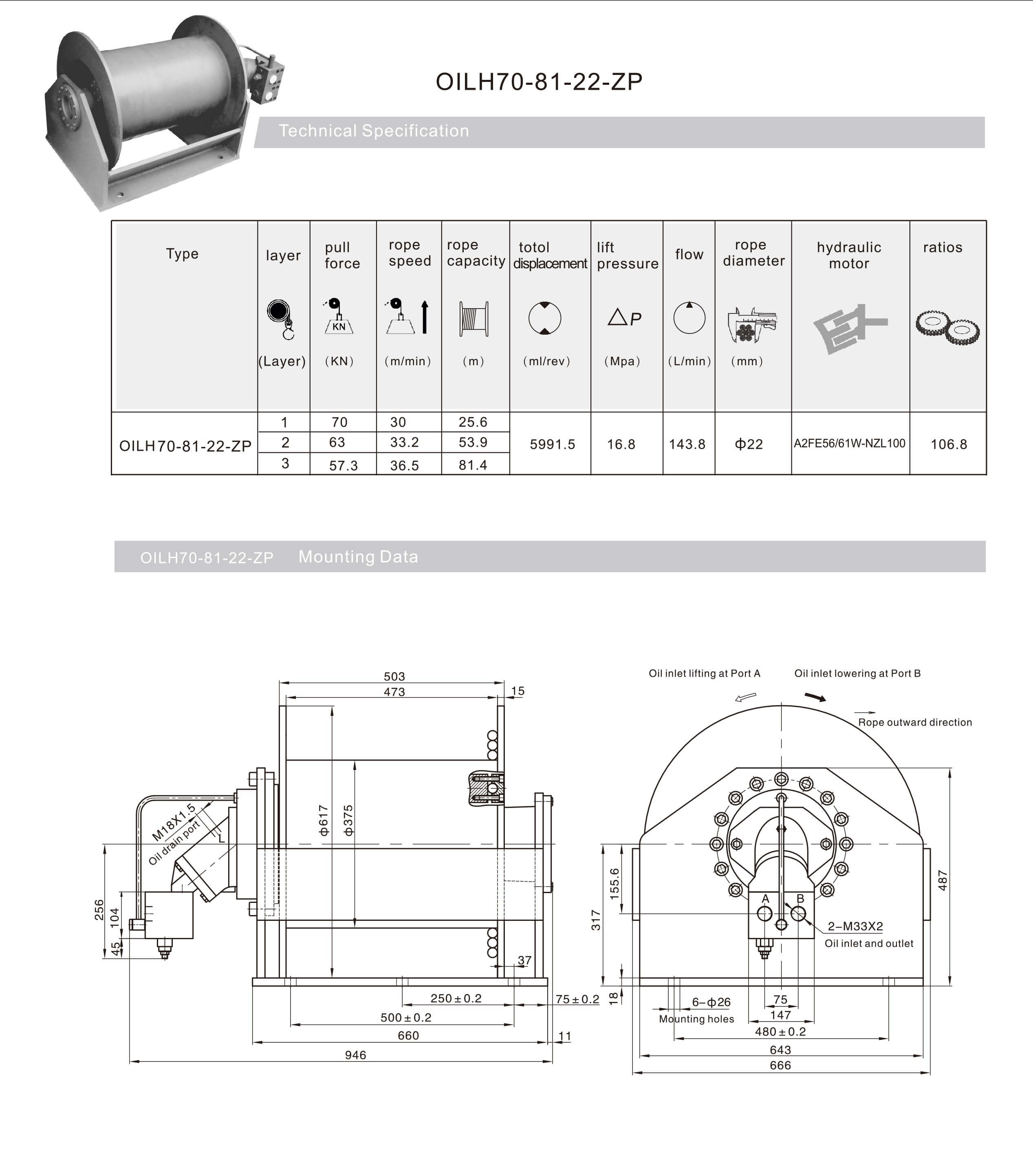

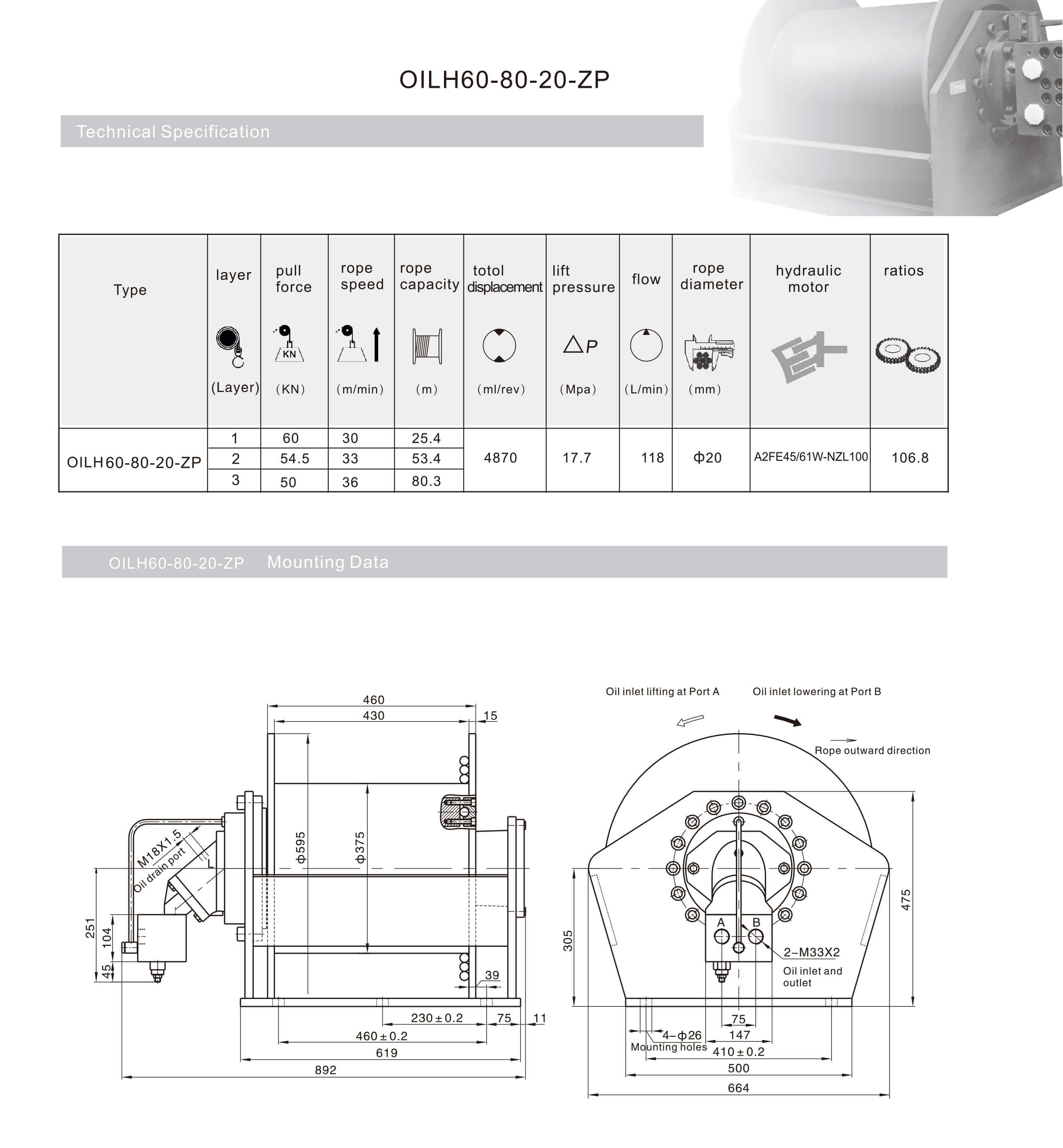

OILH Hydraulic Winches

The following data are measured and obtained under specfic actual experimental conditions, and only for product description purposes. The data shoud not be interpreted as warranted characteristics in legal term.Ningbo lntermot (Ningbo Olil Control Hydraulic Co. Ltd.) reserves the rights to implement modifications without notice. All Partal or total reproduction and copy of such data without formal authorzation is stricty forbidden.

Type                                           Layer
(Layer)
Pull Force
(KN)
Rope Speed
(m/min)
Rope Capacity
(m)
Totol Dsplaoement
(mlrev)
Lift PressureP
(Mpa)
Flow
(L/min)
Rope Diameter
(mm)
Hydraulic Motors Ratios
i
OILH15-50-13-ZPOILH15-50-13.jpg1157513.4925.216.477.513A2FM45/61W-ZB10020.3
213.781.831
312.788.750

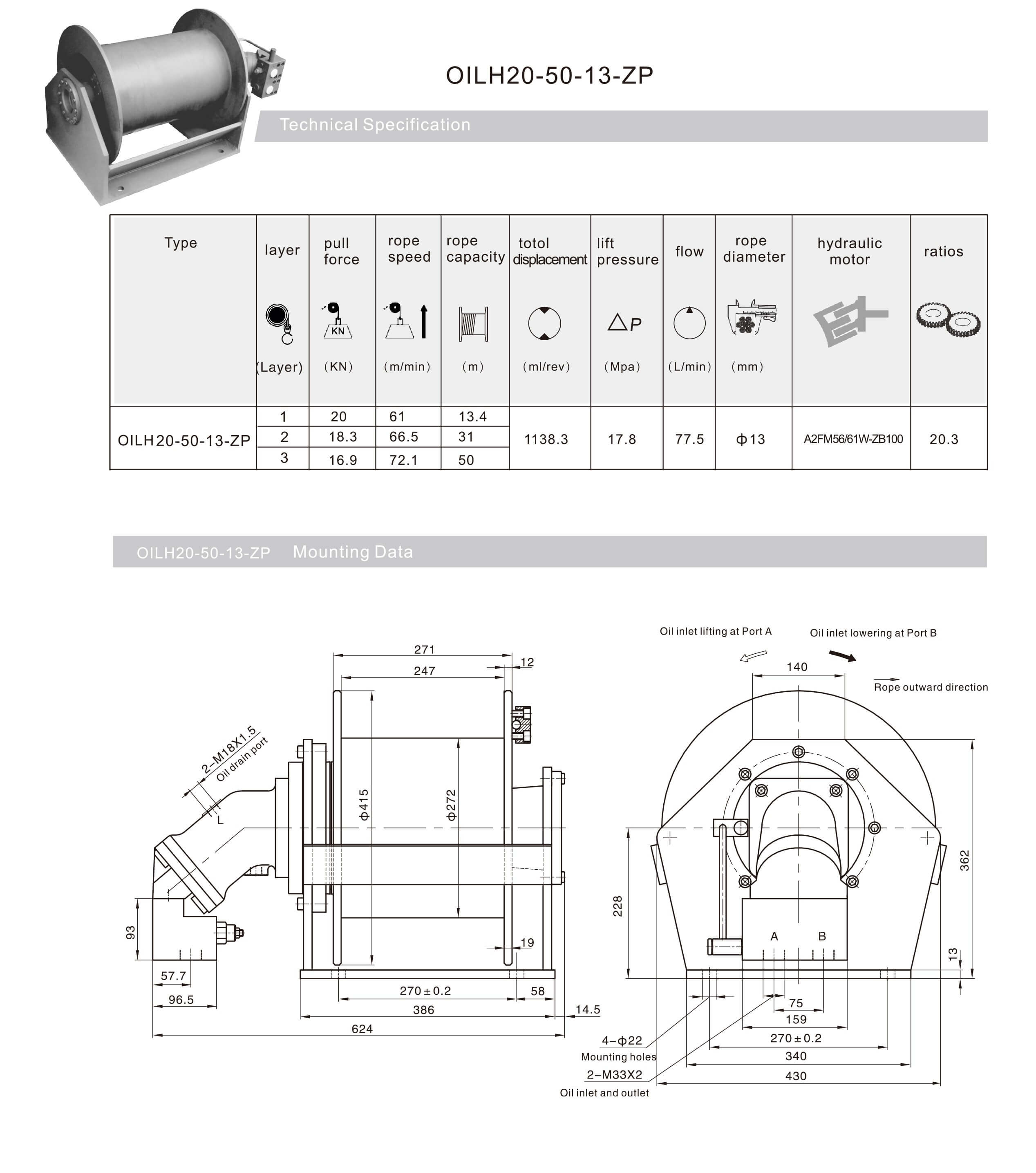

OILH20-50-13-ZPOILH20.jpg1206113.41138.317.877.513A2FM56/61W-ZB10020.3
218.366.531
316.972.150
OILH30-71-16-ZPOILH30.jpg1305519.6209817.710616A2FM56/61W-ZB10037.4
227.56044.6
325.365.271.7
OILH35-131-16-ZPOILH35.jpg135.217.138300715.743.616A2FM80/61W-ZB10037.4
232.518.683
330.120131

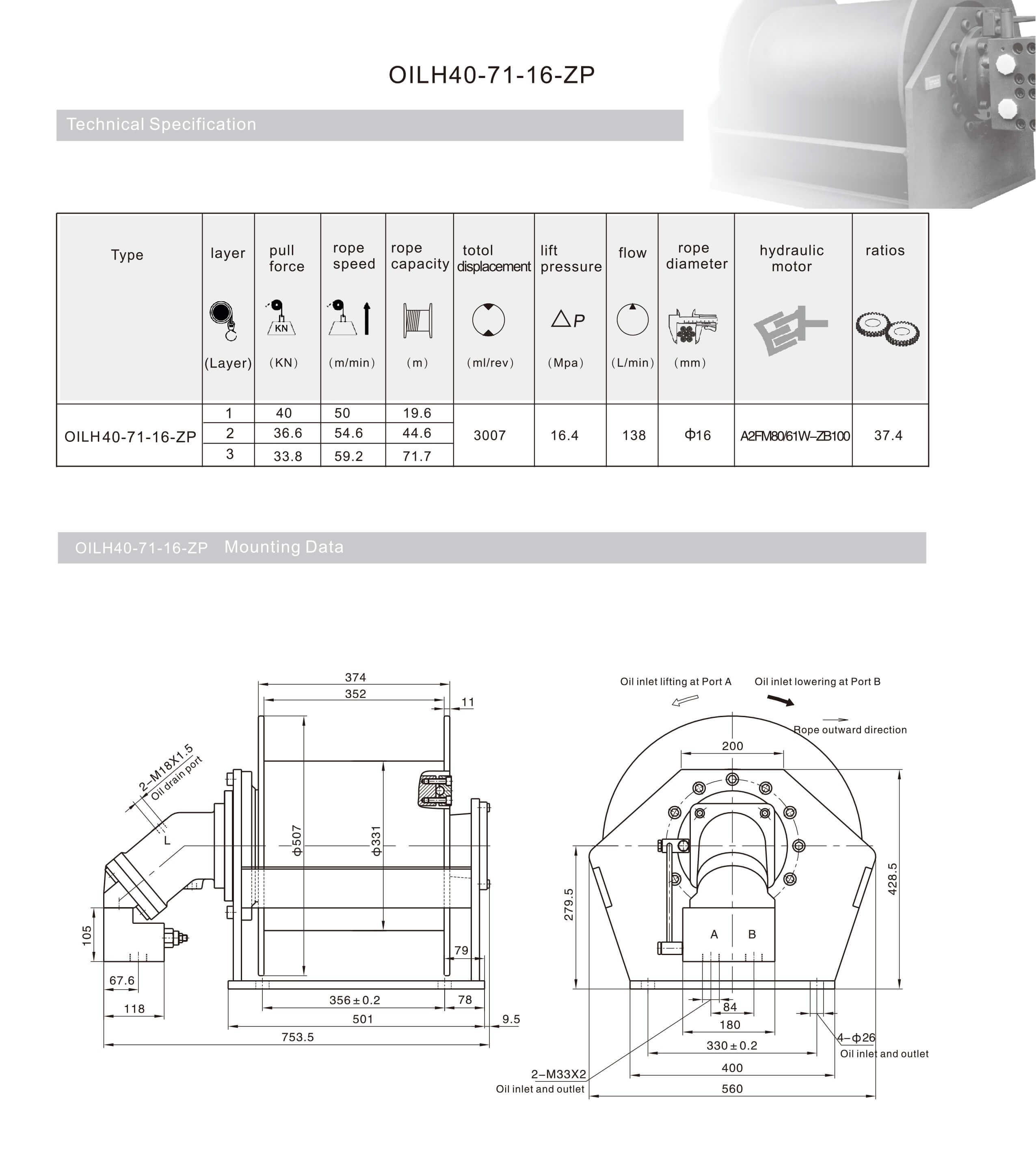

OILH40-71-16-ZPOILH40.jpg1405019.6300716.413816A2FM80/61W-ZB10037.4
236.654.644.6
333.859.271.7
OILH50-80-20-ZPOILH50.jpg1503025.4487014.711820A2FE45/61WNZL100106.8
245.43353.4
341.63680.3
OILH60-80-20-ZPOILH60.jpg1603025,4487017.711820A2FE45/61W-NZL100106.8
254.53353.4
3503680.3
OILH70-81-22-ZP

1703025.65991.516.8143.822A2FE56/61W-NZL100106.8
26333.253.9
357.336.581.4
OILH70-44-22-ZP

17733.623.37376.815.5170.524A2FE80/61W-NZL10092.21
2703744

Load more>>

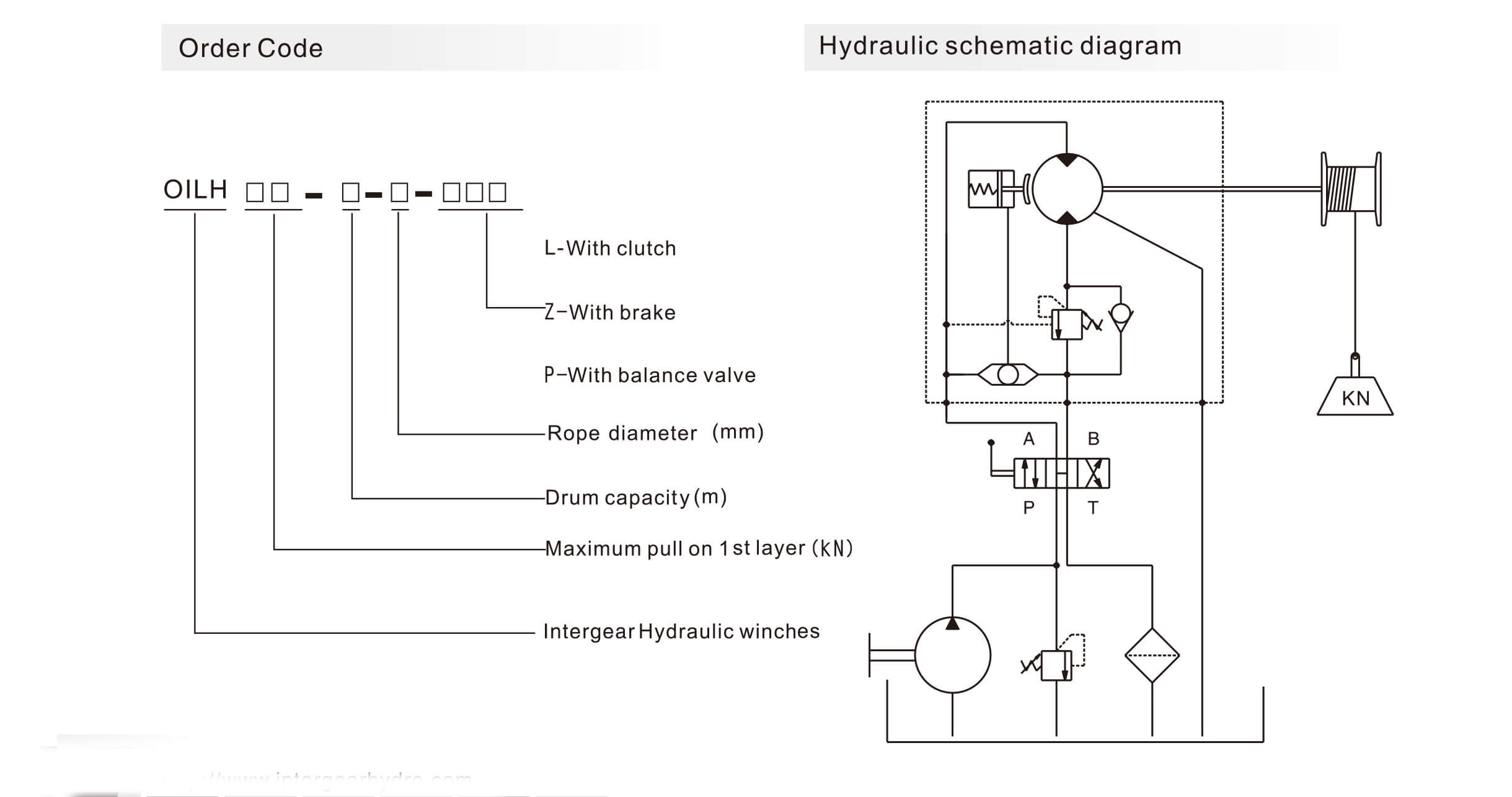

Product identification description


Matters needing attention

  1. The wire ropes on the drum should be arranged orderly and closely. If overlap and oblique winding are found, it should be stopped and rearranged. It is strictly forbbiden to step on the wire rope with hands or feet during the rotation. The wire rope shall not be released completely, retain at least 3 laps.

  2. The wire ropes shouldn't be knottted or twisted. If the wire rope breakage reach to 10% within one pitch length, should be changed.

  3. Nobody are allowed to step over the wire rope when operating. Operaters are not allowed to leave the hydraulic winch when the object are lifting.  The object or cage should be lowered to the ground when resting.

  4. Overloading-more than maximum carring tons are forbbiden.

  5. Others please pay attention to the instructions of Planetary Drives.
